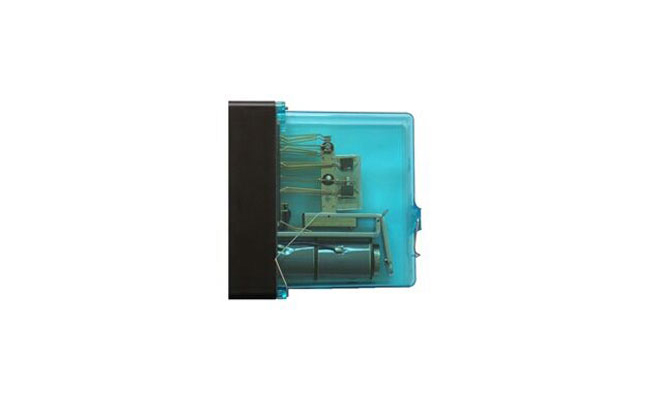

JWJXC-6800 enhanced contact relay
  • Product Details

product name

Stepless enhanced contact relay: JWJXC-6800


Product Usage

The JWJXC-6800 type enhanced contact relay is used as a power supply supervisory relay for the electric point machine in the power supply screen of the small station.

The JWJXC2-6800 type enhanced contact relay is used in the distributed power supply screen.


Features

1. JWJXC-6800, JWJXC2-6800 type relays are DC 220V heavy elasticity reinforced contact electromagnetic relays, adopting the principle of "constant gravity" to force the moving and closing contacts to open when the coil is de-energized.

2. The use of silver-silver oxidation requires contacts, which has the characteristics of strong anti-adhesion and low contact resistance.

3. The magnetic circuit adopts electromagnetic pure iron material with small residual magnetism, and installs the stop piece at the closed position of the armature and the iron core to ensure the minimum air gap of the magnetic circuit, prevent the ferromagnetic parts of the magnetic circuit from magnetization, and ensure the reliable fall of the relay.

4. The magnetic circuit system is basically the same as the AX series of non-polar relays. The difference is the thickness of the armature stop piece to increase the release value and reduce the release time.

5. The contact system consists of two parts: ordinary contacts and reinforced contacts. There are two groups of moving-on and moving-break conversion ordinary contacts; two groups of moving-on and moving-break conversion reinforced contacts with arc-extinguishing magnets, the structure of ordinary contacts and infinite relays Similarly, the reinforced contacts are specially designed high-power contacts and arcing devices.


Applicable environment

The applicable environment of the relay is:

a) Ambient temperature: -40℃~+60℃;

b) Relative humidity: not more than 90% (temperature +25℃);

C) Air pressure: not less than 70kPa (equivalent to an altitude below 3000m);

d) Vibration: the vibration frequency is not more than 15Hz, and the amplitude is not more than 0.45mm;

e) Working position: horizontal;

f) There should be no harmful gas causing explosion hazard around, and good dust-proof measures should be taken.


Dimensions

Relay: 165mm×49mm×163mm (length×width×height)

Socket: 157mm×48mm×22mm (length×width×height)


maintenance

Daily maintenance and maintenance items are as follows:

a) Keep the relay and socket clean;

b) Observe whether the relay operation status is normal;

c) The relay should be replaced in time for abnormal operating conditions and serious contact burnout.


Regular maintenance:

In the electrical life and life management cycle of the relay, the maintenance cycle of the infinite relay and rectifier relay should be five years; the maintenance cycle of the stepless enhanced contact relay, the poled relay and the biased pole relay should be three years; the maintenance cycle of the stepped enhanced contact relay The period should be one year. Appearance inspection and performance inspection should be carried out after the overhaul.


Applicable characteristics

Number of contact groups: 2QHJ; 2QH

Identification pin number: 15, 42;

Strengthen the contact gap: not less than 7mm;

Ordinary contact gap: not less than 1.3mm;

Reinforce the gap of the support plate: generally not less than 0.35mm;

Reinforce the gap of the support plate: the reinforcement is not less than 0.1-0.3mm;

Strengthen contact pressure: dynamic closing is not less than 600mN; dynamic breaking is not less than 300mN;

Ordinary contact pressure: dynamic closing is not less than 250mN; dynamic breaking is not less than 150mN;

Contact uniformity error: not more than 0.20mm.


Electrical characteristics (at +20℃)

Coil resistance: 3400 (1±10%) Q×2

The coils are connected in series, connect 2, 3 to use 1, 4;

Rated value: DC220V;

Magnetizing value: DC220V;

Working value: not more than DC100V;

Release value: not less than DC30V;

Time characteristics (at rated voltage): the pull-in time is not less than 0.1S;

Time characteristics (at rated voltage): the release time is not less than 0.1S;

Contact resistance: not more than 0.10Ω.


Product electrical life

The relay contacts are connected to DC24V1A resistive load; its electrical life is 2×106 times.


Insulation withstand voltage

Under the standard atmospheric conditions of the test, the insulation resistance of the relay should not be less than 100MΩ

Under the condition that the air pressure is not less than 86kPa (equivalent to the altitude below 1000m), the insulation withstand voltage of the relay should be able to withstand AC sine wave 50Hz,

2000V rms voltage, there should be no breakdown flashover after 1 min, and the voltage during repeated test should be 75% of the original test voltage.


After-sales service

From the date of delivery, the warranty period of infinite relays, rectifier relays (the warranty period of electronic components is one year), polarized relays and biased pole relays is 1 year, and the warranty period of infinitely enhanced contact relays and polarized enhanced contact relays Provide free maintenance services for the company during the one-year warranty period; beyond the warranty period, the company screens the relay according to the actual situation and maintenance items. The company provides life-long technical support to create a way for users to master the use and maintenance methods of the relay.

a) Bad quality or damage due to transportation, storage, improper use, etc., and unsealed relays are not covered by the company's warranty;

b) If the user violates the technical requirements of this manual or fails to perform normal maintenance according to the maintenance manual during installation and use, the company does not assume any responsibility for the damage;

c) During the company's warranty period, if the products and parts of Shanghai Shenxin Railway Signal Equipment Co., Ltd. are unpacked without the company's authorization, the company will not be responsible for any damage caused thereby;

d) Non-Shanghai Shenxin Railway Signal Equipment Co., Ltd. components that are assembled on the company's products without the company's consent cause product quality problems, and the company does not assume any responsibility for this;

e) Due to natural disasters, such as earthquakes, floods, lightning strikes, landslides and other irresistible causes, the company will not be responsible for any damage caused thereby;

f) Damage caused by destruction, theft or fire extinguishment, or damage caused by other reasons not caused by the company, the company does not assume any liability arising therefrom.
