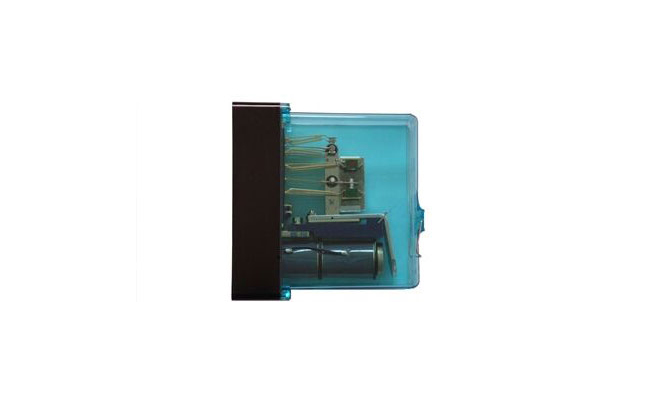

JYJXC-220/220 type has pole strengthened contact relay
  • Product Details

product description

There is a pole strengthened contact relay: JYJXC-220/220


Product Features

The JVJXC-220/220 type has a pole reinforced contact relay used as a two-start relay in the signal switch control circuit.


Product Usage

The JVJXC-220/220 type has a pole reinforced contact relay used as a switch control relay in a signal circuit.


Features

1. The relay is designed according to the needs of the bistable circuit in the signal circuit. Permanent magnets are added to the magnetic circuit system of the relay, so that the relay has two stable states of positioning and reverse due to the different polarity of the current in the coil. These two stable states can continue to be maintained after the current in the coil disappears.

2. The use of silver-silver oxidation requires contacts, which has the characteristics of strong anti-adhesion and low contact resistance.

3. The relay contact system is composed of common contacts and reinforced contacts. There are two sets of positioning and reverse conversion common contacts, and two sets of positioning and reverse conversion reinforced contacts with arc-extinguishing magnets. The strengthened contact of the relay is specially designed for turning on the high current of the switch point machine.

4. The rated voltage of the relay is DC 24V.


Applicable environment

a) Ambient temperature: -40℃~+60℃;

b) Relative humidity: not more than 90% (temperature +25℃);

c) Air pressure: not less than 70kPa (equivalent to an altitude below 3000m);

d) Vibration: the vibration frequency is not more than 15Hz, and the amplitude is not more than 0.45mm;

e) Working position: horizontal;

f) There should be no harmful gas causing explosion hazard around, and good dust-proof measures should be taken.


Dimensions

Relay: 165mm×49mm×163mm (length×width×height)

Socket: 157mm×48mm×22mm (length×width×height)


Installation method

The relay socket is installed on the combination frame (cabinet) with bolts, and the relay is inserted into the socket horizontally and clamped with a hanging spring.

Relay identification pin numbers 15, 54.


Applicable characteristics Mechanical characteristics

Number of contact groups: 2DF, 2DFJ;

Identification pin number: 15, 54;

Contact gap: ordinary contact is not less than 4.5mm; reinforced contact is not less than 7mm;

Pallet gap: ordinary contact point is not less than 0.35mm; strengthened contact point 0.1mm~0.3mm;

Ordinary contact pressure: the positioning contact is not less than 150mN; the reverse contact is not less than 150mN;

Strengthen the contact pressure: the positioning contact is not less than 400mN; the reverse contact is not less than 400mN;

Contact uniformity error: no more than 0.2mm between ordinary contacts and ordinary contacts and between ordinary contacts and reinforced contacts, and no greater than between reinforced contacts and reinforced contacts 0.1mm.

Positioning or reverse position retention force is not less than 2N;


Electrical characteristics (at +20℃)

Coil resistance: 220/220Q

Use the coil alone, use 1, 23, 4;

Rated value: 24V;

Magnetizing value: 64V/64V;

Rotation extreme value: forward 10V~16V, reverse 10V~16V;

Contact resistance: ordinary contact is not more than 0.05Q; strengthened contact is not more than 0.1Q.


maintenance

Daily maintenance and maintenance items are as follows:

a) Keep the relay and socket clean;

b) Observe whether the relay operation status is normal;

c) The relay should be replaced in time for abnormal operating conditions and serious contact burnout.


Regular maintenance:

In the electrical life and life management cycle of the relay, the maintenance cycle of the stepless relay and the rectifier relay should be five years;

The overhaul period of stepless enhanced contact relays, poled relays and biased pole relays should be three years;

The overhaul period of stepped reinforced contact relays should be one year.

Appearance inspection and performance inspection should be carried out after the overhaul.


Insulation withstand voltage

Under the standard atmospheric conditions of the test, the absolute resistance of the relay should not be less than 100MΩ.

Under the condition that the air pressure is not less than 86kPa (equivalent to the altitude below 1000m), the insulation withstand voltage of the relay should be able to withstand AC sine wave 50Hz,

2000V rms voltage, there should be no breakdown flashover after 1 min, and the voltage during repeated test should be 75% of the original test voltage.


Product electrical life

The ordinary contact of the relay is connected with DC24V1A resistive load; the strengthened contact is connected with DC220V7.5A, 0.05H inductive load, and its electrical life is 1×105 times.


After-sales service

From the date of delivery, the warranty period of infinite relays, rectifier relays (the warranty period of electronic components is one year), polarized relays and biased pole relays is 1 year, and the warranty period of infinitely enhanced contact relays and polarized enhanced contact relays Provide free maintenance services for the company during the one-year warranty period; beyond the warranty period, the company will provide life-long technical support based on the actual situation and the maintenance project cost. The company provides life-long technical support to create conditions for users to grasp the use and maintenance methods of the relay.

a) Bad quality or damage due to transportation, storage, improper use, etc., and unsealed relays are not covered by the company's warranty;

b) If the user violates the technical requirements of this manual or fails to perform normal maintenance according to the maintenance manual during installation and use, the company does not assume any responsibility for the damage;

c) During the company's warranty period, if the products and parts of Shanghai Shenxin Railway Signal Equipment Co., Ltd. are unpacked without the company's authorization, the company will not be responsible for any damage caused thereby;

d) Non-Shanghai Shenxin Railway Signal Equipment Co., Ltd. components that are assembled on the company's products without the company's consent cause product quality problems, and the company does not assume any responsibility for this;

e) The company does not assume any responsibility for damage caused by natural disasters, such as earthquakes, floods, lightning strikes, landslides and other irresistible causes;

f) Damage caused by destruction, theft or fire extinguishment, or damage caused by other reasons other than our company. The company does not bear any responsibility arising therefrom.
