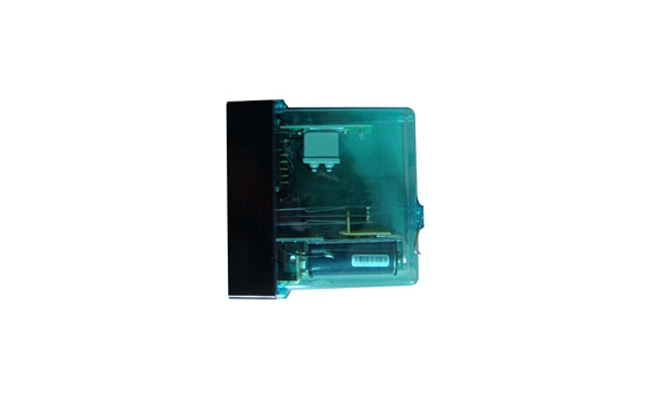

JCZC3-150 Transmission Relay
  • Product Details

Product Usage

The transmission relay is one of the important equipment in the AC counting code automatic blocking equipment. The DC pulse sent by the electric code transmitter is transformed into an AC pulse by the relay, and then sent to the track circuit.

The JCZC3-150 transmission relay is used for single-line section whole station strand-track coding.


Heavy spring force relay.

The JCZC3-150 transmission relay is connected in parallel with the coil after its capacitance and resistance are connected in series, which can consume the inductive energy when the coil is disconnected.


165mm×49mm×163mm (length×width×height)

Installation method

The relay socket is installed on the combination frame (cabinet) with bolts, and the relay is inserted into the socket horizontally and clamped with a hanging spring.

Relay identification pin numbers 13, 54.

Applicable environment

a) Ambient temperature: -40℃~+60℃;

b) Relative humidity: not more than 90% (temperature +25°C);

c) Air pressure: not less than 70kPa (equivalent to an altitude below 3000m);

d) Vibration: the vibration frequency is not more than 15Hz, and the amplitude is not more than 0.45mm;

e) Working position: horizontal;

f) There should be no harmful gas causing explosion hazard around, and good dust-proof measures should be taken.

Applicable characteristics Mechanical characteristics

Number of contact groups: 2QHJ;

Identification pin number: 14, 31;

Strengthen the contact gap: not less than 1.5mm;

Strengthen the contact pressure: the front contact is not less than 450mN; the rear contact is not less than 400mN;

The air gap between the iron core and the street iron when the relay is working: not more than 0.10mm.

Strengthen the contact pressure on the transmission rod: not less than 100mN.

Strengthen the joint travel: not less than 0.1mm.

Radial travel distance of street iron: 0.3mm-0.7mm.

Street rail vertical travel: 0.3mm-0.5mm.

Street rail axial travel: 0.05mm-0.15mm.

Electrical characteristics

Rated value: DC24V

Release value: not less than DC4.8V

Working value: not more than DC16V

Coil resistance: 150 (1±10%) Ω

Insulation withstand voltage

Under the standard atmospheric conditions of the test, the insulation resistance of the relay should not be less than 100MΩ.

Under the condition that the air pressure is not lower than 86kPa (equivalent to the altitude below 1000m), the insulation withstand voltage of the relay should be able to withstand AC sine wave 50Hz, 2000V rms voltage, there should be no breakdown flashover after 1min, the voltage when repeating the test Should be 75% of the original test voltage value.

Product electrical life

The relay contact is connected to DC220V1.5A resistive load;

The electrical life is 1×106 times.

After-sales service

From the date of delivery, the warranty period of infinite relays, rectifier relays (the warranty period of electronic components is one year), polarized relays and biased pole relays is 1 year, and the warranty period of infinitely enhanced contact relays and polarized enhanced contact relays Provide free maintenance services for the company during the one-year warranty period; beyond the warranty period, the company will provide life-long technical support based on the actual situation and the maintenance cost of the maintenance item, creating conditions for users to master the use and maintenance methods of the relay.

a) Bad quality or damage due to transportation, storage, improper use, etc., and unsealed relays are not covered by the company's warranty;

b) If the user violates the technical requirements of this manual or fails to perform normal maintenance according to the maintenance manual during installation and use, the company does not assume any responsibility for the damage;

c) During the company's warranty period, if the products and parts of Shanghai Shenxin Railway Signal Equipment Co., Ltd. are unpacked without the company's authorization, the company will not bear any responsibilities arising therefrom;

d) Non-Shanghai Shenxin Railway Signal Equipment Co., Ltd. components that are assembled into the company's products without the company's consent cause product quality problems, and the company does not assume any responsibility for the resulting products;

e) The company does not assume any responsibility for damage caused by natural disasters, such as earthquakes, floods, lightning strikes, landslides and other irresistible causes;

f) Damage caused by destruction, theft or fire extinguishment, or damage caused by other reasons not caused by the company, the company does not assume any liability arising therefrom.
