Product Usage

The transmission relay is one of the important equipment in the AC counting code automatic blocking equipment. The DC pulse sent by the electric code transmitter is transformed into an AC pulse by the transmission relay, and then sent to the track circuit.

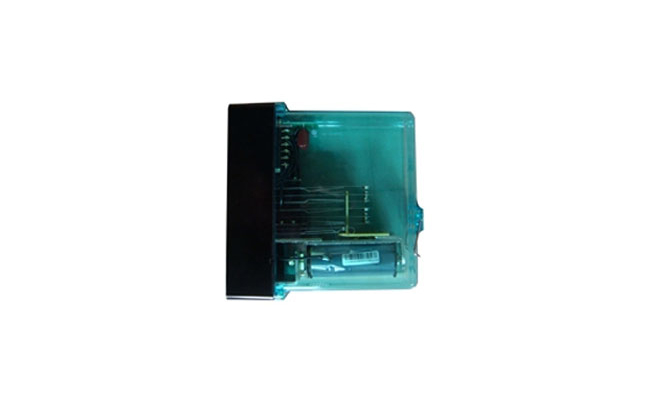

JCZC1-72 transmission relay is used for automatic blocking interval.

Features

Heavy spring force relay.

Dimensions

165mm×49mm×163mm (length×width×height)

Installation method

The relay socket is installed on the combination pear (cabinet) with bolts, and the relay is horizontally inserted into the socket and clamped with a hanging spring.

Relay identification pin numbers 13, 53.

Applicable environment

a) Ambient temperature: -40℃~+60℃;

b) Relative humidity: not more than 90% (temperature +25°C);

c) Air pressure: not less than 70kPa (equivalent to an altitude below 3000m);

d) Vibration: the vibration frequency is not more than 15Hz, and the amplitude is not more than 0.45mm;

e) Working position: horizontal;

f) There should be no harmful gas causing explosion hazard around, and good dust-proof measures should be taken.

maintenance

Daily maintenance and maintenance items are as follows:

a) Keep the relay and socket clean;

b) Observe whether the relay operation status is normal;

c) The relay should be replaced in time for abnormal operating conditions and serious contact burnout.

Regular maintenance:

In the electrical life and life management cycle of the relay, the maintenance cycle of the stepless relay and the rectifier relay should be five years;

The overhaul period of stepless enhanced contact relays, poled relays and biased pole relays should be three years;

The overhaul period of stepped reinforced contact relays should be one year.

Appearance inspection and performance inspection should be carried out after the overhaul.

Mechanical properties

Number of contact groups: 2QHJ; 2QH

Identification pin number: 14, 52;

Strengthen the contact gap: not less than 1.5mm;

Ordinary contact gap: not less than 0.8mm;

Strengthen the contact pressure: the front contact is not less than 450mN; the rear contact is not less than 450mN;

Ordinary contact pressure: the front contact is not less than 250mN; the rear contact is not less than 250mN;

The air gap between the iron core and the street iron when the relay is working: not more than 0.20mm.

Strengthen the contact pressure on the transmission rod: not less than 100mN.

Strengthen the joint travel: not less than 0.1mm.

Common travel of common contacts: not less than 0.25mm

Radial travel distance of street iron: 0.3mm-0.7mm.

Street rail vertical travel: 0.3mm-0.5mm.

Street rail axial travel: 0.05mm-0.15mm.

Electrical characteristics

Rated value: DC12V

Release value: not less than DC2V

Working value: not more than DC7.5V

Coil resistance: 72 (1±10%) Q

Insulation withstand voltage

Under the standard atmospheric conditions of the test, the insulation resistance of the relay should not be less than 100MQ.

Under the condition that the air pressure is not lower than 86kPa (equivalent to the altitude below 1000m), the insulation withstand voltage of the relay should be able to withstand AC sine wave 50Hz, 2000V rms voltage, there should be no breakdown flashover after 1min, the voltage when repeating the test Should be 75% of the original test voltage value.

Product electrical life

The relay contact is connected to DC220V1.5A

Resistive load; its electrical life is 1×106 times.
