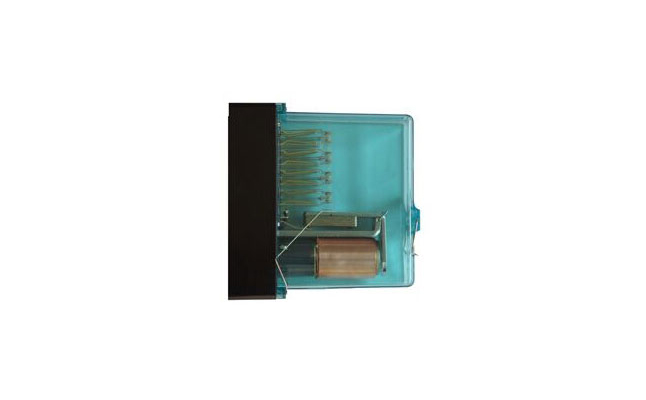

JWXC-H310 Stepless Slow Action Relay
  • Product Details

Product Features

JWXC-H310 type stepless slow-acting relay is used in 97 type 25Hz phase sensitive track circuit, as the repeater relay of JRJC1-70/240 type AC binary relay, and enhances the anti-interference ability of 25Hz phase sensitive track circuit.


Product Usage

JWXC-H310 type stepless slow-acting relay is used in 97 type 25Hz phase sensitive track circuit, as the repeater relay of JRJC1-70/240 type AC binary relay, and enhances the anti-interference ability of 25Hz phase sensitive track circuit.


Features

1. The relay is a heavy elastic DC electromagnetic relay, which uses the principle of "constant gravity" to force the moving and closing contacts to open when the coil is de-energized.

2. The use of silver-silver oxidation requires contacts, which has the characteristics of strong anti-adhesion and low contact resistance.

3. The magnetic circuit adopts electromagnetic pure iron material with small residual magnetism, and a stop piece is installed at the closed position of the armature and the iron core to ensure the minimum air gap of the magnetic circuit, prevent the magnetization of the ferromagnetic parts of the magnetic circuit, and ensure the reliable fall of the relay.

4. The relay has a long slow suction and slow release time.

5. The contact system is composed of ordinary contacts, with eight groups of common contacts for switching on and off.

6. The rated voltage of the relay is DC 24V.


Applicable environment

a) Ambient temperature: -40℃~+60℃;

b) Relative humidity: not more than 90% (temperature +25°C);

c) Air pressure: not less than 70kPa (equivalent to an altitude below 3000m);

d) Vibration: the vibration frequency is not more than 15Hz, and the amplitude is not more than 0.45mm;

e) Working position: horizontal;

f) There should be no harmful gas causing explosion hazard around, and good dust-proof measures should be taken.


Dimensions

Relay: 165mm×49mm×163mm (length×width×height)

Socket: 157mm×48mm×22mm (length×width×height)


Installation method

The relay socket is installed on the combination frame (cabinet) with bolts, and the relay is horizontally inserted into the socket and clamped with a hanging spring.

Relay identification pin numbers 23, 54.


Applicable characteristics Mechanical characteristics

Number of contact groups: 8QH;

Identification pin number: 23, 54;

Contact gap: not less than 1.3mm;

Pallet gap: not less than 0.35mm;

Contact pressure: the dynamic contact point is not less than 250mN; the dynamic disconnection point is not less than 150mN;

Contact uniformity error: not more than 0.20mm.


Electrical characteristics (at +20℃)

Coil resistance: 310 (1±10%) Ω

The coil is used in a single turn, use 1, 4;

Rated value: DC24V;

Magnetizing value: DC60V;

Working value: not more than DC15V;

Release value: not less than DC4V;

Slow release time: 0.8±0.15 at DC24V;

Slow suction time: 0.45±0.15 at DC24V;

Contact resistance: not more than 0.05Ω.


maintenance

Daily maintenance and maintenance items are as follows:

a) Keep the relay and socket clean;

b) Observe whether the relay operation status is normal;

c) The relay should be replaced in time for abnormal operating conditions and serious contact burnout.


Regular maintenance:

In the electrical life and life management cycle of the relay, the maintenance cycle of the infinite relay and rectifier relay should be five years; the maintenance cycle of the stepless enhanced contact relay, the poled relay and the biased pole relay should be three years; the maintenance cycle of the stepped enhanced contact relay The period should be one year. Appearance inspection and performance inspection should be carried out after the overhaul.


Product electrical life

The relay contacts are connected to DC24V1A resistive load; its electrical life is 2×106 times.


Insulation withstand voltage

Under the standard atmospheric conditions of the test, the insulation resistance of the relay should not be less than 100MQ.

Under the condition of air pressure not less than 86kPa (equivalent to the altitude below 1000m), the insulation withstand voltage of the relay should be able to withstand AC sine wave 50Hz, 1000V rms voltage, there should be no breakdown flashover after 1min, the voltage when repeating the test Should be 75% of the original test voltage value.


After-sales service

From the date of delivery, the warranty period of infinite relays, rectifier relays (the warranty period of electronic components is one year), polarized relays and biased pole relays is 1 year, and the warranty period of infinitely enhanced contact relays and polarized enhanced contact relays Provide free maintenance services for the company during the one-year warranty period; for relays that exceed the warranty period, the company will provide life-long technical support based on actual conditions and maintenance items, creating conditions for users to master the use and maintenance methods of the relay.

a) Bad quality or damage due to transportation, storage, improper use, etc., and unsealed relays are not covered by the company's warranty;

b) If the user violates the technical requirements of this instruction manual during the installation and use process or fails to perform normal maintenance according to the maintenance manual and is properly damaged, the company will not be responsible for any damage caused thereby;

c) During the company's warranty period, if the products and parts of Shanghai Shenxin Railway Signal Equipment Co., Ltd. are unpacked without the company's authorization, the company will not bear any responsibilities arising therefrom;

d) Non-Shanghai Shenxin Railway Signal Equipment Co., Ltd. components that are assembled on the company's products without the company's consent cause product quality problems, and the company does not assume any responsibility for this;

e) The company does not assume any responsibility for damage caused by natural disasters, such as earthquakes, floods, hits, landslides, etc. that cannot be resisted;

f) Damage caused by destruction, theft or fire extinguishment, or damage caused by other reasons not caused by the company, the company does not assume any liability arising therefrom.
