Description

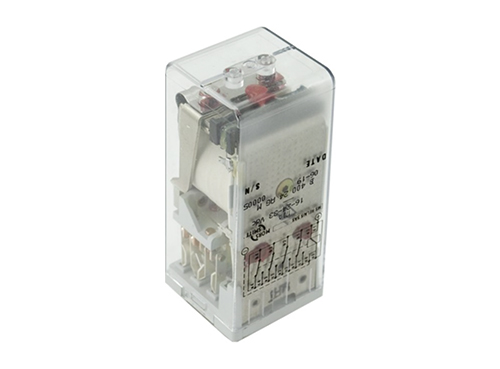

The B 400 safety-critical heavy-duty relay is equipped with 4 double-make/double-break C/O contacts (Type Z). Weld-free transfer safety contacts come as standard. Its pluggable design features a safety locking mechanism for easy maintenance—no wire disconnection or removal of other hardware is required for relay inspection or replacement.

It meets railway rolling stock standards for shock and vibration resistance. Positive mechanical keying between the relay and socket is integrated into both components during production, and terminal identification is clearly marked on a nameplate permanently fixed to the relay.

Applications

The B 400 relay is engineered for ultra-reliable, safety-critical applications such as door control, emergency brake fault detection, traction interlocking and braking systems, and is widely deployed on numerous EMUs worldwide.

Features

• Instantaneous safety-critical relay

• Pluggable design with safety lock for simplified maintenance

• 4 double-make/double-break C/O contacts (Type Z), rated 12 Amps

• Standard weld-free transfer contacts

• Mechanical contact service life: 100 million cycles

• Operating temperature range: -40°C to +80°C

Advantages

• Proven reliability under heavy-duty operating conditions

• Extended service life

• Simple maintenance and replacement

• Suitable for safety-critical operations

• Low total life-cycle cost

• Maintenance-free operation
