Applications

This robust plug-in relay is suitable for harsh-environment applications demanding exceptional reliability and long service life. It delivers proven dependable performance when switching high DC inductive loads and low-current circuits. Boasting a compact form factor, a wide range of optional configurations and diverse socket options, the D-U200 series relays serve as an easy-to-use, highly flexible solution.

Description

This relay series is engineered for demanding rolling stock applications such as vehicle door control. Thanks to optimized structural design and carefully selected materials, the D-U200 relays withstand corrosive atmospheres, extreme low and high temperatures, shock, vibration, and environments ranging from dry to highly humid. An integrated snap-lock eliminates the need for external retaining clips, firmly securing the relay to its socket under all operating and mounting conditions.

All units come standard with a magnetic blow-out arc quenching system for high breaking capacity and extended contact service life, as well as back EMF suppression diodes.

Features

• Compact pluggable design

• Instantaneous contacts

• Standard back EMF suppression diode

• Magnetic arc blow-out structure

• Flat square silver-plated relay pins ensuring excellent contact with sockets

• Wide terminal sleeve compatibility

• Integrated snap-lock fastener

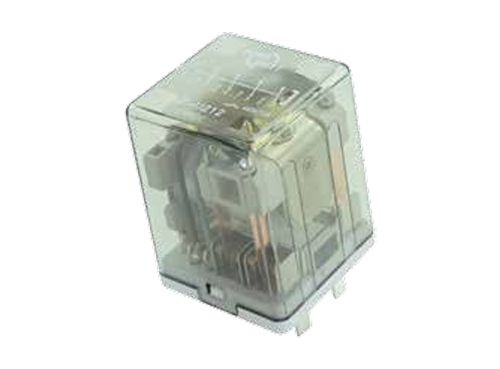

• Transparent cover

• High DC breaking capacity

• High flexibility with abundant optional variants

• Optional positive mechanical keying between relay and socket

Advantages

• Field-proven reliability

• Long-term product availability

• Easy maintenance

• Suitable for safety-critical applications

• Low total life-cycle cost

• Maintenance-free operation
